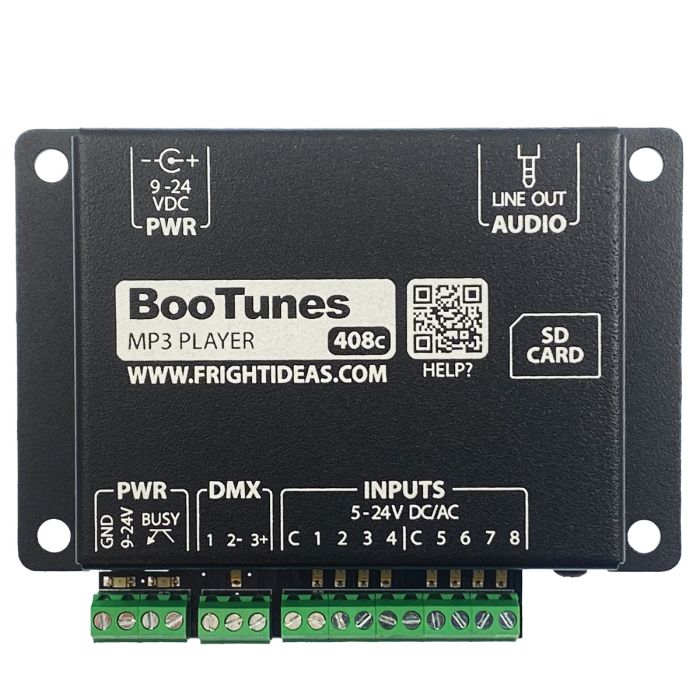

BooTunes
As low as $146.99
333 In stock
- Eight trigger inputs
- Auto-play options
- Multiple operating modes
Audio
Fill your SD card with as many sounds as you want and the BooTunes will start pumping them out. If you want the sounds to play in a certain sequence then just name the files appropriately. No need to copy them to the card in a certain order.
Need great audio quality? The BooTunes can play any MP3 file up to 256kbps. The audio output is a standard line-level output using a 3.5mm stereo audio jack.
DMX Compatible
BooTunes and BooBoxes can be easily chained together using DMX to have them trigger the same scenes simultaneously. Using the DMX connection means you don't have to waste the BooBox's outputs to trigger additional audio channels.
A BooTunes can even be set to act as a DMX master, triggering other BooTunes units at the same time it's triggered.
Trigger Inputs
Each of the eight optically-isolated inputs can be set to play a sound, loop a sound, sequence through a folder of sounds, cancel a sound, or ramp the volume. If triggered during playback, sounds can be set to interrupt the current sound or to ignore the trigger completely. Trigger pre and post delays are also available to optimize timing.
Options Galore
Set some inputs to fade when interrupted, pause playback, or duck the volume so you can make an announcement. There's a bunch of options available so you can customize the BooTunes behavior to your needs. And there's no dip switches to fiddle with, all settings and options are easily changed by just creating folders with special names.
Some Option Examples | |
_RND | Random Playback - This option can be added to any INPUT folder if you want the BooTunes to pick a random sound when the input is triggered. |
---|---|
_RESUME# | Ambient Resume - This option tells the BooTunes to resume the ambient sound at the point it was interrupted, rather than starting a new sound from the beginning. The # value specifies the fade rate in seconds to fade back into the sound. |
_FADINT# | Fade on Interrupt - Cause the currently playing sound to fade out over # seconds, rather than end abruptly, if interrupted. |
_PRDLY# | Trigger Pre-Delay - Delay # seconds before playing sounds from a particular input. |
_PODLY# | Trigger Post-Delay - Once a sound completes, ignore its trigger input for # seconds to prevent additional sounds in the same folder from playing too quickly. |
_PREV _NEXT | Next and Previous Track - Turns the input into a next or previous track control. |
_INT _SELFINT | Interruptible Inputs - Sets the input to allow interrupts from other inputs or it's own input. |
_SLAVE | Slave Mode - This option will set the BooTunes to act as a DMX slave to another BooTunes or BooBox. |
_DMX### | DMX Slave - This option sets the BooTunes to a generic DMX mode, and sets the DMX channel to ###. |
Mounting Options
The BooTunes enclosure has sturdy mounting flanges for easy mounting to control boards or cabinets. If you're also mounting other controllers, or would like to mount the BooTunes to DIN rail, we've got you covered. The BooTunes snaps into standard 2.75" SnapTrack to easily mount devices side by side. Add some DIN Rail Clips if you'd like to mount the SnapTrack to standard 35mm DIN rail.
Read our blog post on mounting options for more information.
Firmware Upgradable
As with most of our other products, the BooTunes is completely firmware upgradeable. Stay up to date with the latest features simply by downloading the latest firmware free from our website.
Amplifier | None |
---|---|
Audio Storage | SD Card |
Audio Quality | MP3 |
DMX Compatible | Yes |
Inputs | 8 |
Supply Current | 50mA |
Supply Voltage | 9-24 VDC |
