Cable 22/4
SKU 730-4-F
22 AWG Stranded Cable
4 Conductors
Sold by the Foot
No USA Import Tariff Expected
This item is made in the USA. About shipping to the USA
- Buy 100 for $0.25 each and save 17%
- Buy 250 for $0.20 each and save 33%
- Buy 500 for $0.17 each and save 43%
- Buy 1000 for $0.15 each and save 50%
Overview
This cable is great for wiring up solenoids, relays, sensors, buttons, etc. The wires are stranded so the cable is flexible and easy to work with.

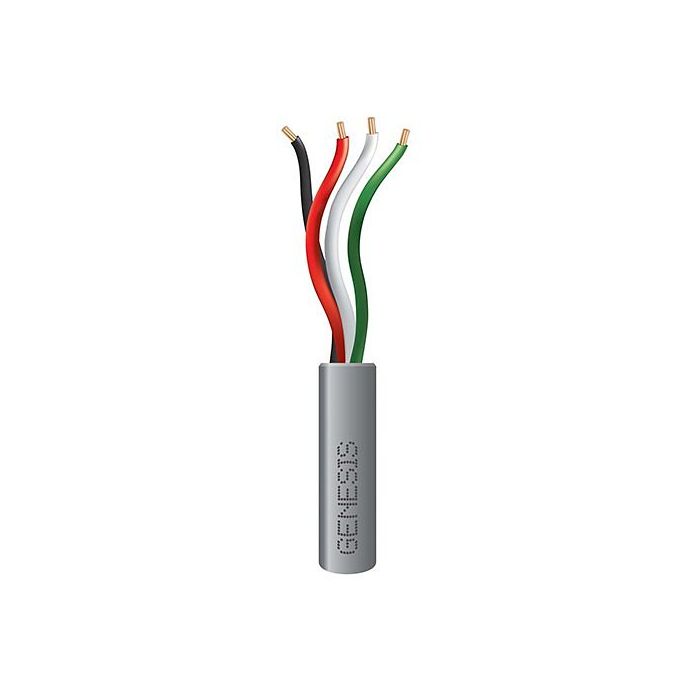

The cable contains 4 x 22 gauge wires colored red, black, green, and white.
22 gauge wire is rated for 5 amps, so fuse appropriately if your power source is larger than that.
Sold by the foot. A full box is 1000 feet.
Specs
Conductors: 4 x 22 AWG 7 Strand Bare Copper
Riser Rated (Non-Plenum, cannot be installed in airways)
Jacket: PVC Gray
Voltage: 300 Volts Max.
Shielding: None
Ratings: CMR, CL3R, FPLR, FT4
