Magnetic Sensor

$9.99

24 In stock

SKU

613

- Surface mount magnetic sensor - Up to 1" range

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Use this sensor and magnet when you want to detect if a door or drawer closes, or when an object is placed in or removed from a specific location. There are no wires to splice, simply insert your wires into the sensor's terminal block.

The sensor closes its contact when the magnet is about 1" away. When paired with our controllers this will turn the controller's input ON when the magnet is on the sensor, or OFF when the magnet is away from the sensor. If you want to trigger the controller when the object is moved away from the sensor you will have to enable the normally-closed input setting on the controller. Note that our PicoBoo ONE does not support this setting.

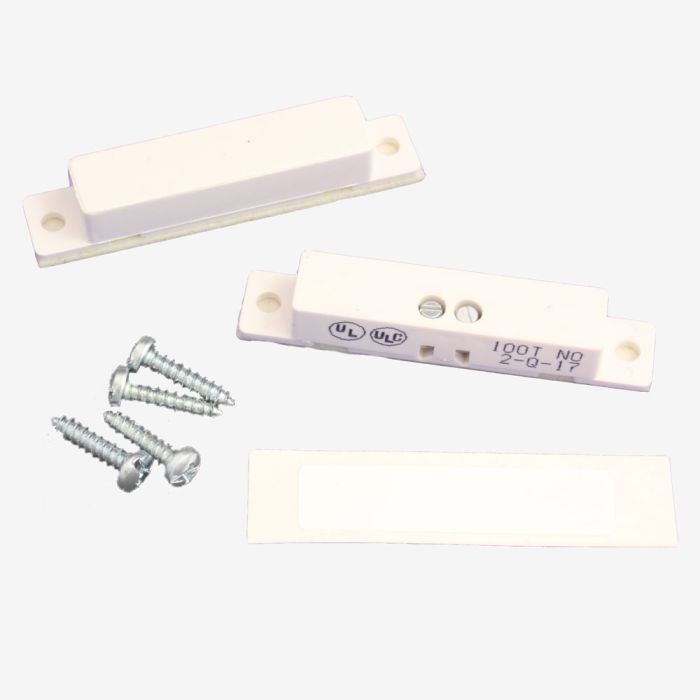

Includes four screws and a white sticker to hide the screw terminals after installation.

Specifications

Max Voltage: 30VDC
Max Current: 0.4A
Magnet Dimensions: 2.0" x 0.375" x 0.3" (LxWxH)
Sensor Dimensions: 2.0" x 0.375" x 0.3" (LxWxH)
