PicoBoo ONE

Prop Controller

PRODUCT ID: FI-102
- Simple, compact unit
- One solid-state output
- Triggerable

Availability: 84 In stock

$49.99

Price as configured: $46.99

* Required Fields

Price as configured: $46.99

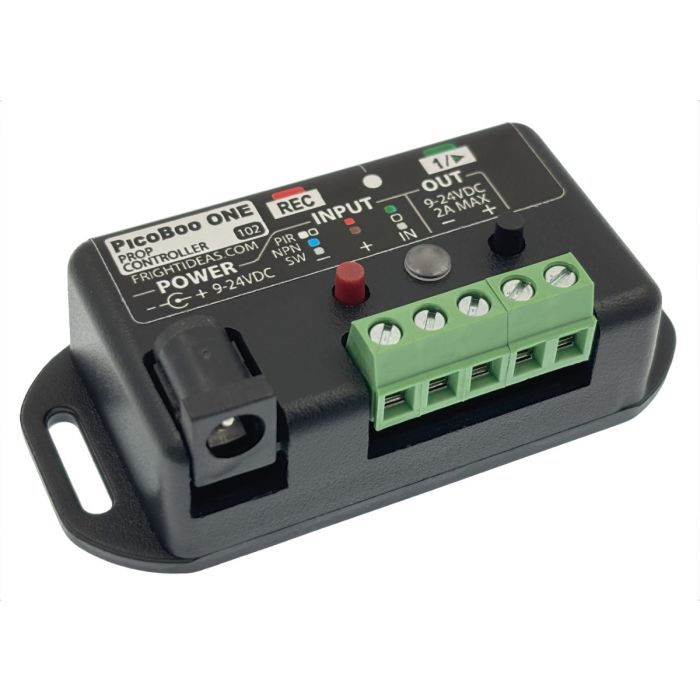

Shown with 1" Paperclip

More Views

  • Front
  • Iso
  • Back

Product Description

The newest addition to the PicoBoo line, the PicoBoo ONE is our most compact and cost effective controller.

Real-Time Programming

The PicoBoo ONE's output is programmed in real-time. Simply tap record, then animate the output by pressing the 1 button. Create any output pattern you want, leave it on, flash it, pulse it. When you're done, press record again to save. A little over one minute of animation at 15 frames per second can be recorded.

Trigger Input

The PicoBoo ONE can be connected to any of our triggers. It's smart enough to know when a PIR motion sensor is connected, automatically waiting for it to warm up to prevent triggering at startup. Connecting the trigger to ground will loop the scare indefinitely.

Our selection of triggers can be seen here.

Solid-State Output

The PicoBoo ONE's output can handle up to 2 amps. It's solid-state, so it outputs either 12 or 24 volts depending on what power supply you use to power it. The output can be set to mimick a normally-closed contact, turning it off instead of on when activated - great for darkening a room when patrons enter.

This output cannot be used to control high-voltage AC devices unless a relay is used.


Write-Protection

Just like its PicoBoo brothers, the PicoBoo ONE has a write protection mechanism that helps prevent accidental or unwanted program changes.

Downloads and Documentation

Documents
Operating Manual  Download

Additional Information

Amplifier No
Audio Storage No
Audio Quality No
DMX Compatible No
Output Capacity No
Output Type No
Outputs No
Inputs No
Supply Current 50mA
Supply Voltage 9-24 VDC
