PicoTalk - Mouth, Eyes, Head

As low as $99.99

In stock

SKU
402-3

- Head turn output
- Real-time mouth control to audio
- Intelligent random eye and head movement
- Adjustable LED eye outputs

Customize PicoTalk - Mouth, Eyes, Head

* Required Fields

Your Customization
PicoTalk - Mouth, Eyes, Head
PicoTalk - Mouth, Eyes, Head

In stock

$99.99

Summary
    The PicoTalk is also available in our fully assembled and ready to use Talking Skull

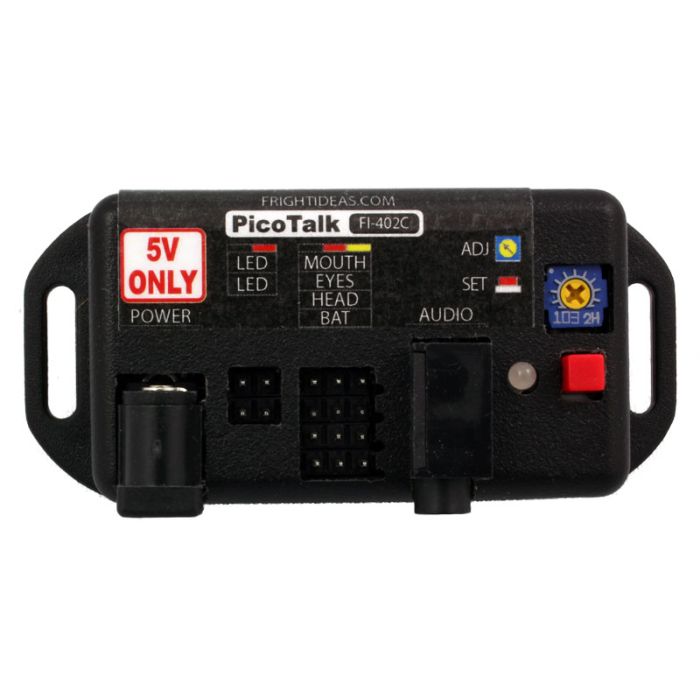

    The PicoTalk is a real-time servo and LED controller. Connect an audio source and up to three servos and LEDs and the PicoTalk will bring them to life.

    Real-Time Mouth Control

    The PicoTalk listens carefully to the audio and moves the servo in sync to make the character look like it’s doing the talking. No programming or specially encoded audio track required.


    LED Eye Control

    The new PicoTalk has two dimmable outputs for LEDs. The brightness and behavior of the LEDs is adjustable. The LEDs can be set to throb to the character's voice, fade out after an adjustable amount of inactivity, or stay on all the time.

    The PicoTalk also contains the resistors for the LEDs, so there's no need to fiddle with soldering them externally.


    Servo Sleep

    If either servo hasn't moved for one second the PicoTalk will stop sending the position signal. This extends servo lifetime by allowing the servo to relax during times of inactivity. This option can be disabled if your setup requires the servos to be active at all times.

    Intelligent Random Movement

    The second and third servo outputs can be used to control the eyes and head turn of the character. The PicoTalk will occasionally move these servos when the character isn’t talking to give it some life. When the character starts talking, it will increase the activity. The amount of movement is completely adjustable.

    Easy Setup

    The PicoTalk can be easily configured to suit your application. Simply turn the adjustment pot and tap the set button to adjust the following paramters:

    • Mouth servo open and closed limits
    • Mouth servo speed
    • Eye servo left and right limits
    • Head turn servo left and right limits
    • Head turn maximum speed
    • Audio sensitivity
    • LED Brightness and behavior

    Videos


    Talking Skull Demo

    PicoTalk Quick Programming

    PicoTalk Full Programming

    Downloads and Documentation

    Documents

    Operating Manual      Download
