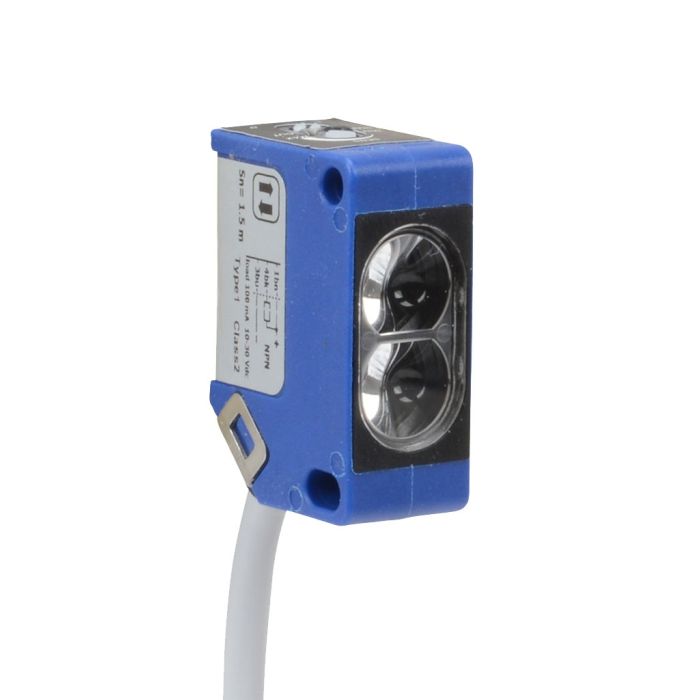

Diffuse Beam Sensor

7 In stock
No Reflector Requried

Our diffuse beam sensor is similar to our Reflective Beam Sensor except it doesn't need a reflector. It's range isn't as long as the reflective sensor, but it can be more convenient to use when mounting a reflector on a sturdy object opposite the sensor is difficult or impossible.

A mounting bracket and screws are included. Requires a power supply if it's not used with one of our controllers.


  • Sensor
  • Mounting bracket with screws


  • Input Voltage: 10 - 30 VDC
  • Output Type: NPN, Light or Dark On.
  • Sensing Range: 1.5M (4.5 ft) Maximum. Adjustable.
  • Cable Length: 2M (6 ft)
  • IP Rating: IP67
  • Light Emission: Infrared

Downloads and Documentation


Operating Manual      Download
More Information
Range 4.5 feet max.
Output Capacity 100mA
Output Type Solid-State
Supply Current 100mA Max.
Supply Voltage 12-24 VDC
