Power Injector

SKU 506

- Powers NeoPixels or a Servo
- Works with 2018 EscapeKeeper Only

Final product price
Price as configured

In stock

USA Import Tariff: 50%

Made in Canada, not USMCA qualified. Expect to pay the courier about $7.50 per unit (50% of the price) before delivery. Expect to pay the courier 50% of the price before delivery. This is not included in our price. About shipping to the USA

Power Supply
Include DIN Clips Optional
Power Injector

Overview

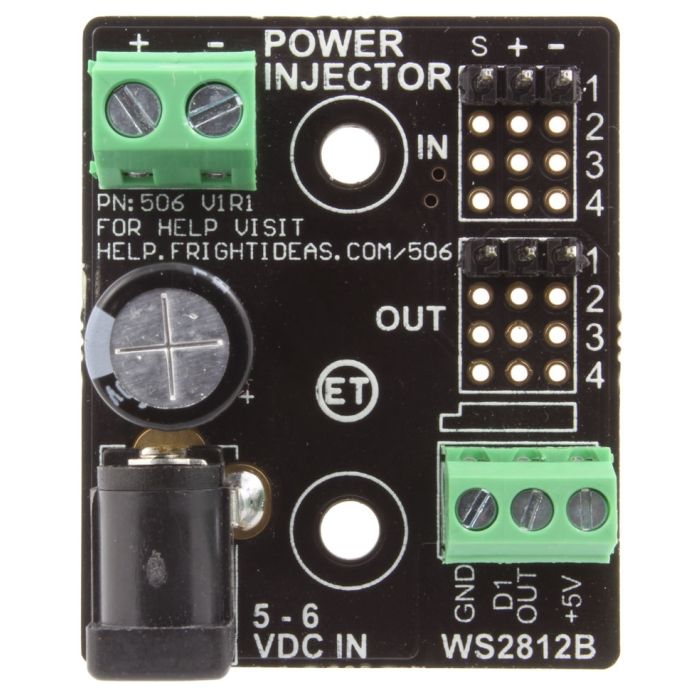

This board will allow you to connect NeoPixels™ or an RC Servo to your 2018 EscapeKeeper.

Power Injection

Pixel strips and RC Servos can require a lot of power at a voltage lower than the EscapeKeeper can provide. This board, coupled with an external power supply, will sit between the EscapeKeeper and your servo or LEDs to provide this power.

If you are using an LED strip, it must be of the WS2812B or SK6812 variety. These are commonly called NeoPixels™ by Adafruit.

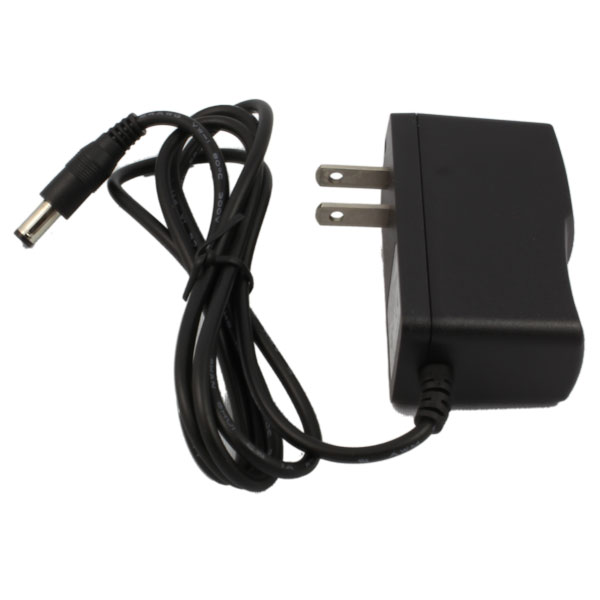

Power Supply

This board requires a 5 or 6 volt power supply. Which voltage and current you choose depends on what you'll be driving. NeoPixels must always be driven at 5 volts. They take up to 60mA each when all three colors are on. Servos can be 5 or 6 volts depending on your requirements and the servo you choose. The current they require varies dramatically depending on the size of the servo and how much load it's under. See the list below for some rough estimates.

Power Supply Examples:

  • Up to 30 NeoPixels - A 5 Volt 2 Amp power supply.
  • Up to 80 NeoPixels - A 5 Volt 5 Amp power supply.
  • Standard Servo - A 5 Volt 2 Amp power supply.
  • Large Servo - A 6 Volt 5 Amp power supply.



DIN Rail Mountable

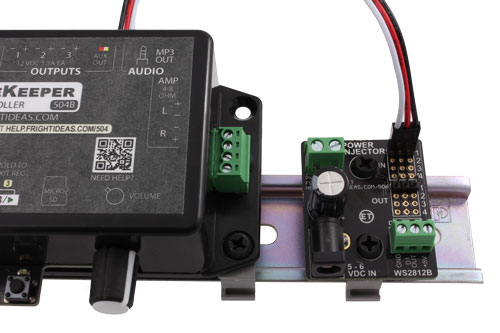

The EscapeKeeper and its accessory boards are DIN rail mountable for easy installation.

Compatibilty

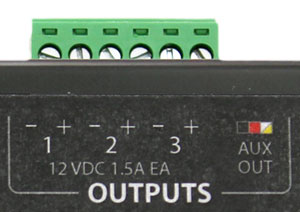

This accessory will only work the 2018 model EscapeKeeper as it requires the new AUX output. As shown in the image, you can see this output next to output 3 on the EscapeKeeper. It will not work with the EscapeKeeper JR or FlexMax.

You may need to update your firmware to get the new Patch Panel puzzle mode. Your firmware must be at v2.1 or above. You can always get the latest firmware at help.frightideas.com.
