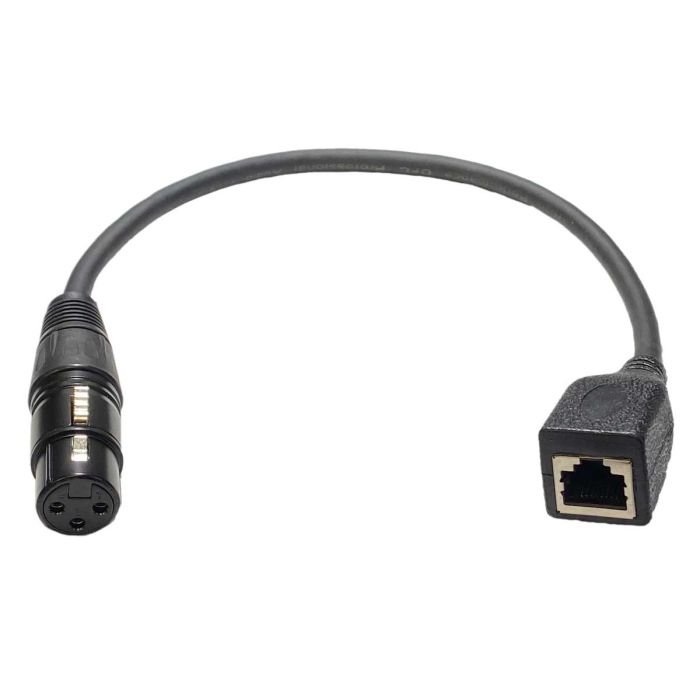

RJ45 to 3P XLR Female Adapter

SKU 340

Convert from RJ45 DMX to 3 Pin XLR DMX Output.

$9.99

In stock

USA Import Tariff: 45%

Made in China. Expect to pay the courier about $4.50 per unit (45% of the price) before delivery. Expect to pay the courier 45% of the price before delivery. This is not included in our price. About shipping to the USA

Tip: if this item is offered as an option on one of our tariff-free (USMCA qualified) controllers, add it with the controller instead to avoid this tariff.

RJ45 to 3P XLR Female Adapter

Overview

This is a standard RJ45 to Female XLR 3 Pin Adapter.  Use this in combination with any CAT5e/6A cable to connect an RJ45 DMX output to the 3 pin XLR input of a DMX fixture.

Standard 3P XLR DMX connectors are large.  Incorporating them into small products would dramatically increase the size and cost of the product.  The XLR cables they require can also be expensive for permanent installs.

Many DMX products in permanent installs now use the RJ45 standard for DMX.  The connectors are smaller, and can be used with standard Cat5/6 cables.

Important Note
Standard Cat6 cables are thick and can cause strain on the connectors in the controller.  Use either Cat5e or Cat6A slim cables.

Buying Elsewhere?

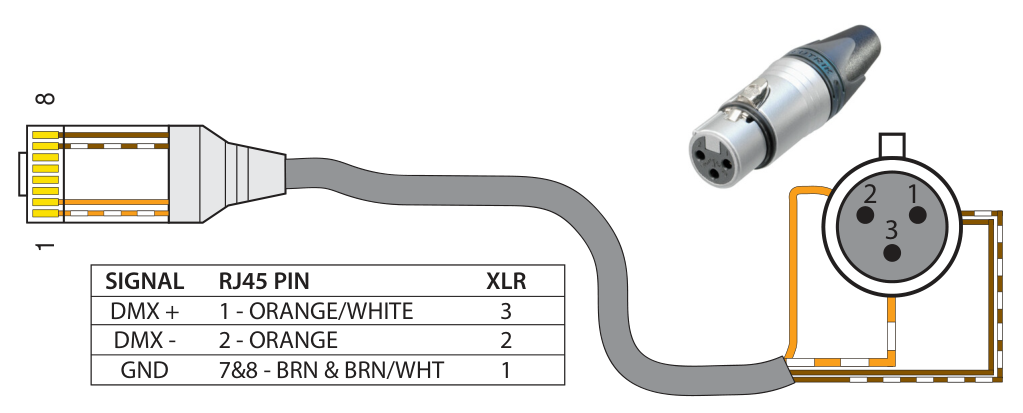

If you are thinking about buying this adapter elsewhere be sure it matches the standard RJ45 to XLR DMX pinout shown below.  If GND is only connected to 7 or 8 on the RJ45 side that is OK, but the others must match.  Some customers have had issues because the adapter they purchased on Amazon was not wired correctly.
