Sprite Trigger Interface

SKU 437

- Trigger up to 8 videos
- Optically Isolated

$32.99

In stock

USA Import Tariff: 50%

Made in Canada, not USMCA qualified. Expect to pay the courier about $16.50 per unit (50% of the price) before delivery. Expect to pay the courier 50% of the price before delivery. This is not included in our price. About shipping to the USA

Tip: if this item is offered as an option on one of our tariff-free (USMCA qualified) controllers, add it with the controller instead to avoid this tariff.

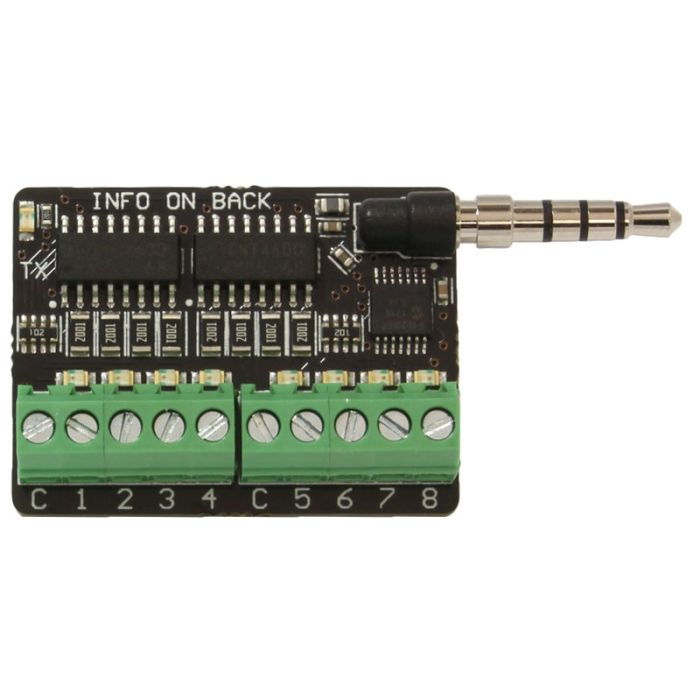

Sprite Trigger Interface

Overview

Trigger up to 8 separate videos using this interface. Compatible with PIRs, buttons, sensors and any controller capable of outputting 9 to 24 volts.

An external power supply suitable for your sensors will be required if sensors are used. With buttons, an external power supply or even a 9 volt battery would work fine. When interfacing with a controller, power can be borrowed from the controller's power supply.

All 8 inputs are optically-isolated, which prevents interference and voltage transients caused by nearby motors, solenoids, and relays from damaging the Sprite. This also makes it easy to reliably interface the Sprite to other control systems as ground loops and noise from external power supplies are eliminated.

The player will loop file 000 when idle. Once an input is activated the Sprite will transition seamlessly to the triggered video file without any glitches or black frames. Once the triggered video is finished it will return to the 000 file if present.

Includes

  • Sprite Trigger Interface Board
  • Manual

Specifcations

  • Input Voltage: 9 - 24V AC or DC

Downloads & documentation

Documents
