FlexMax

As low as $0.00

Out of stock

SKU
216

Discontinued.  Replaced by FlexMax 2.
- Now supports If This Then That logic
- MP3 audio / 50 Watt Amplifier
- High current solid-state outputs
- 4, 8, or 16 output models
- 3 outputs can dim LEDs or small bulbs
- 8 trigger inputs (link multiple units for more)
- 16MB internal memory
- DMX lighting and RC servo outputs

The FlexMax is also available in a Starter Kit with a Director Connect or ScareMaster.
The FlexMax can now be configured using If This Then That logic. You can trigger scenes, control variables, and much more. Multiple FlexMax can also be linked together to get more outputs AND inputs. Absolutely no other controller can offer you this many features at these prices.

Programming

The FlexMax is easily programmed using our free Director software. Create even the most complex shows with just your mouse and keyboard. Director will save your show to an SD card so it can be uploaded to the FlexMax.

If you'd like to program in real-time, the Director Connect dongle will allow you to connect your PC to the FlexMax so Director can animate it live.

The FlexMax can use either its internal memory or an SD card for animation and MP3 storage. The internal 16MB flash chip has enough memory for many applications. For more demanding setups, pop in an SD card and it’ll use that instead.

Behaviors

You can now setup global and scene-specific Behaviors to control how the FlexMax responds to inputs, and other events like variable and timer changes. Behaviors can be used to jump to scenes, control outputs, override DMX channels, and more. You can see an example on the left of how Behaviors look in the Director software.

Behavior 'IF' statements can trigger off of input states, output states, variables, timers, and more. Instead of simply triggering immediately when an input is activated, you can add minimum ON times to filter out noise or false inputs.

Behavior 'THEN' statements can control outputs, DMX channels, trigger specific or random scenes, modify variables, control timers, and more.

Flexible Outputs

The FlexMax can be purchased in 4, 8, or 16 output models. All outputs are solid-state so they can control 12 or 24VDC loads without wear and tear. To control high voltage or current loads a relay must be used.

More outputs can be added by adding another FlexMax or Flex.

Output Accessories

If you want to control more than one or two AC or high-current loads, check out our Output Accessories. We offer relay boards and AC relay packs that start working as soon as you plug them into the expansion port.

Please note that these output accessories do not add more outputs to a FlexMax, they simply offer a convenient way to control different types of loads. For example, output 1 on the expansion port will turn on when output 1 on the FlexMax is activated. You can connect both of the outputs to different devices, as long as you don't mind them both turning on at the same time.

Three Dimmable Outputs

On the 16 output model, the last three outputs can optionally be used to dim LEDs or small bulbs. Each output can handle 1.5 amps - that's a lot of LEDs! Create any lighting effect you want using the sliders on our ScareMaster or the virtual sliders in Director. When driving LEDs with these outputs you'll need to run the FlexMax at 12 volts, or use 24 volts and our LED resistors to reduce the voltage at the LED.

Amplifier & Mixer Input

For maximum sound quality and power efficiency the FlexMax harnesses the power of a 50 watt Class D stereo amplifier. If that's not enough for you, the line-out can be used to connect to even larger amplifiers. The mixer input allows you to take advantage of the internal amplifier for other line-level audio you may need amplified as well.

To realize the full power of the FlexMax's amplifier, you must use the 24 volt 5 amp power supply.

DMX Lighting

Set the scene for your high-end props and scenes by adding the ability to control popular stage lighting, strobes, and foggers. The FlexMax makes it easy to control all of them while keeping them in sync with your prop’s animation. Adding DMX devices is as simple as linking them using DMX cables, which means they don't use up any of your solid-state outputs.

The FlexMax will initially output up to 128 DMX channels. Support for 256 and 512 DMX channels can be added in place after purchase using the Director software.

DMX Capture

The FlexMax can also be used to capture DMX data from another source. This feature can be used to import animation from another software package or device. The capture can then be used as one of the scenes in your show.


Audio

No need to waste valuable outputs triggering an external audio device. The FlexMax’s built-in MP3 player lets you playback up to 8 different CD quality audio tracks for each scene. It can also play unlimited ambient audio files, resume the ambient audio after a triggered scene, and fade audio between scenes.

Want the ambient sounds a little quieter than the scare sounds? The FlexMax has independent volume controls for each channel and scene. This allows you to quickly adjust the volume on a scene by scene basis without any sound editing.

Need even more audio channels? Link the FlexMax to our BooTunes using the DMX connector so you don't waste any outputs.


Trigger Inputs

The FlexMax has eight optically-isolated trigger inputs. Inputs can be used to trigger scenes, different length shows for busy nights, or even as emergency stops. Pre and post-delays are also available for each trigger, as well as a timer mode to set the prop off on a recurring schedule.

The most common triggers are PIR motions sensors, beam sensors, hand triggers, and pressure mats. Our selection of triggers can be seen here.

If you need more inputs, up to 3 additional FlexMax can be added to get up to 32 inputs.


Servo Outputs

Two servo outputs are available to drive standard RC servos. Great for accurately controlling the eyes or mouth of an elaborate prop. Servo position is controlled using the ScareMaster's sliders or analog lines in our Director software.

Standard and wide-range servos are both supported.


Mounting Options

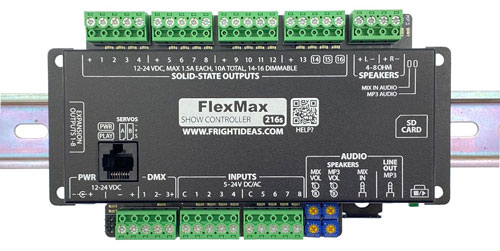

The FlexMax enclosure has sturdy mounting flanges for easy mounting to control boards or cabinets. You can also purchase DIN Rail brackets that screw to the back of the FlexMax for sturdy mounting to DIN Rail.


Power Supply

The FlexMax can be powered by a 12 or 24 volt DC power supply. The voltage you choose to power your FlexMax is the voltage it will send out of its solid-state outputs.

For more information on selecting a power supply please read here.

Downloads and Documentation

Documents

Quick Start Guide      Download
Dimensions      Download

Downloads

Director Software      Download
More Information
Amplifier 50 watt Class D
Audio Storage SD Card
Audio Quality MP3
DMX Compatible Yes
Output Capacity 1.5A Each, 10A Total
Output Type Solid-State
Outputs 16
Inputs 8
Supply Current 50mA to 10A
Supply Voltage 9-24 VDC
